eBulldog Camera Nozzle
Article number 18-402.200iA
Description

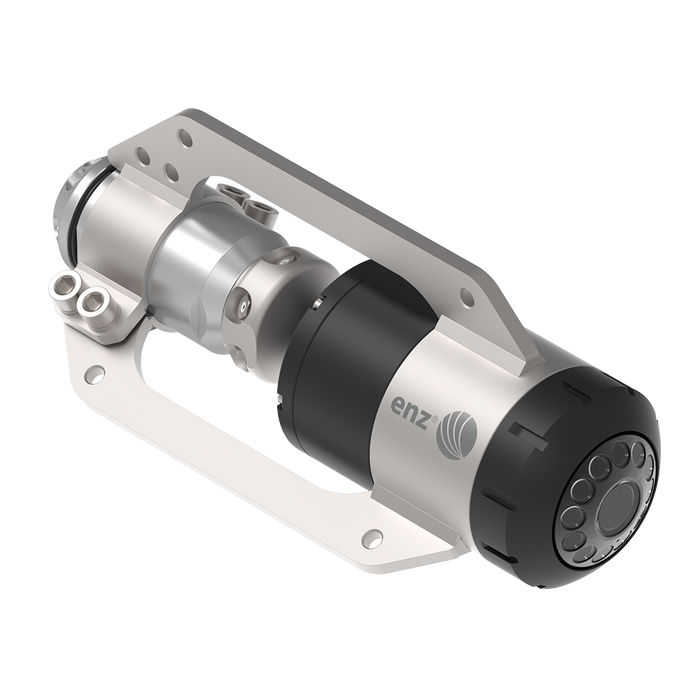

enz® Camera – the camera nozzle with integrated data management
The enz® Camera Nozzle adds a new dimension to the enz® nozzle product range! The modular design allows universal use with all nozzle types, such as the eBomb or the eBulldog, and thus guarantees streak-free all-around cleaning in every application!
The HD-ready resolution and 12 high-power LEDs deliver high-resolution video footage for quality control, documentation, and preliminary inspection. Data management is fully integrated into the system through the WiFi interface and connection to the enz® Cloud. All your manholes and channels are automatically mapped on Google Maps with the videos. The enz® Camera Nozzle, which is simple, fast, and robust, increases productivity without any negative impact on the cleaning performance or quality.
Technical Data
| Article number |
Connection
|
Pipe Dimension
|
Min. L/min at 100 bar
|
Rear Jets
|
Rotating Jets
|
Length x Diameter
|
Weight
|
Recycling
|
Bursting Pressure
|
|---|---|---|---|---|---|---|---|---|---|
| 18-402.200iA | 3/4" | 200 - 600 mm | 200 l/min (52.8 US GPM) | 9 x M8 | 6 x M10 | 325 x 160 x 130 mm | 9,1 kg | Yes | 200 bar (2900 PSI) |
| 18-402.200iB | 1" | 200 - 600 mm | 200 l/min (52.8 US GPM) | 9 x M8 | 6 x M10 | 325 x 160 x 130 mm | 9,1 kg | Yes | 200 bar (2900 PSI) |
| 18-402.200iC | 1 1/4" | 200 - 600 mm | 200 l/min (52.8 US GPM) | 9 x M8 | 6 x M10 | 325 x 160 x 130 mm | 9,1 kg | Yes | 200 bar (2900 PSI) |
